Using EAM's proven aviation technology, these twin-tube life rafts provide superior performance in a smaller, lighter package.  Buoyancy tubes are made from two-ply FAA approved, neoprene rubber coated fabric.  These rafts feature boarding ramps for easy entry, self-erecting canopies, and insulated double floors for insulation.  Composite inflation cylinders help keep the weight low.  Pack in soft fabric valise.

FEATURES

• Automatic erecting canopy with inflatable canopy support.
• Bright fluorescent orange canopy with retro-reflective tape panels for improved visibility.
• Self-inflating boarding ramp for easy entry.
• Rigid, telescoping rear boarding ladder.
• Optional inflatable double floor inflates manually with hand pump for insulation in frigid waters.
• High pressure nitrogen inflation system for rapid cold weather inflation.
• Inflation system pressure gauge visible from outside of all packs for quick in-service checks.
• Three (3) year recommended frequency of inspection
• Cylinder inflation valve using puncture disc technology for long term leak resistance.
• Survival kits packed in sealed, waterproof nylon pouch.
• All 135, 135/JAR, and CARs survival kits include a reverse osmosis Watermaker.
• Five (5) extra large Icelandic type water ballast bags provide for stability/capsize resistance.  Bags weighted for quick, automatic deployment.
• Automatic deploying sea anchor.
• Exterior lifeline and interior grasp line integrated into raft seams for added strength.

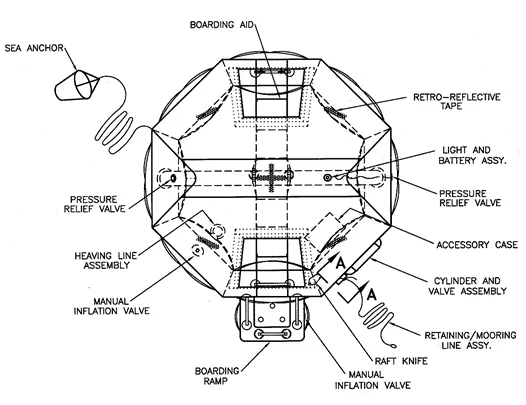

Pack Specifications: VIP Life Raft, 10-Man (T10AS)

• Dimensions and weights shown are nominal and do not allow for pack expansion and swelling.
• Unless otherwise specified, tolerances of actual pack dimensions are as follows: For dimensions of 5.5 inches and less = -0.25/ 1.0.
• For stowage compartment clearance, allow additional 0.5 to 1.5 inches in excess of final pack dimensions.
• Allow additional 3.0 lbs. weight when ELT installed.
